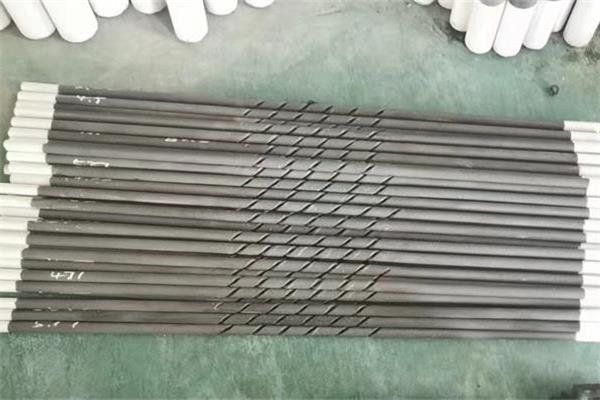

SG type SIC heating element refers to wiring at both ends. The heating end is threaded. The upper and lower parts are cold ends. It is mainly used for heating kilns with special needs. It is characterized by more power saving, simple operation, high service temperature and long service life.
| Dia（mm） | Nominal oading（1000℃） | |||
| Hot Zone | Cold End | |||
| Ω/mm | W/mm | Ω/mm | W/mm | |
| 14 | 0.00885 | 6.59 | 0.0015 | 0.30 |
| 16 | 0.00698 | 7.54 | 0.00129 | 0.50 |
| 20 | 0.00559 | 9.42 | 0.00097 | 0.60 |
| 25 | 0.00455 | 11.78 | 0.00058 | 0.93 |
| 30 | 0.00340 | 14.13 | 0.00040 | 0.95 |
| 32 | 0.00314 | 14.93 | 0.00038 | 0.97 |
| 35 | 0.00223 | 16.49 | 0.00032 | 0.98 |
| 38 | 0.00214 | 17.95 | 0.00025 | 0.99 |
| 40 | 0.00208 | 18.84 | 0.00024 | 1.00 |
| 45 | 0.00182 | 20.91 | 0.00022 | 1.02 |
